RoboMaster Ocusync VTM Receiver&Transmitter
Pre-sale
Online purchase for this product is not supported, please refer to the material purchase information for the offline purchase process.
Product description

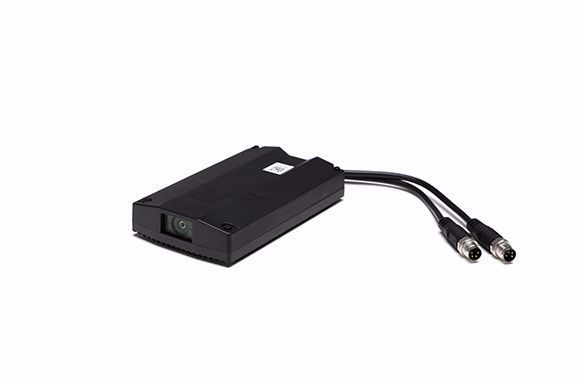

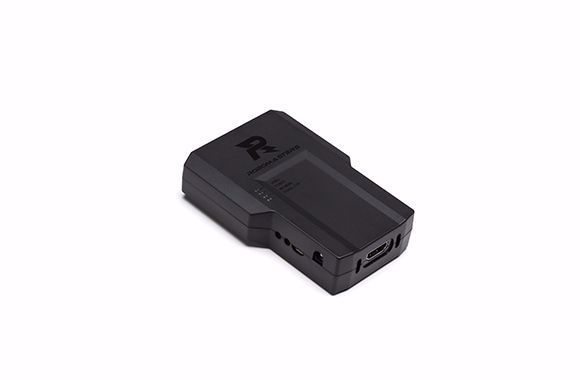

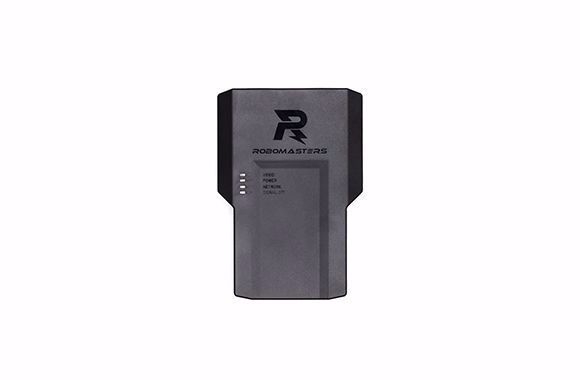

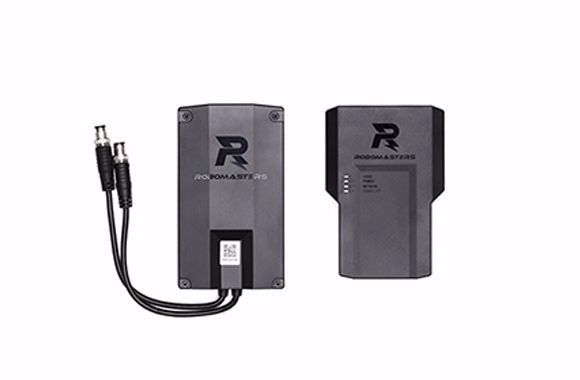

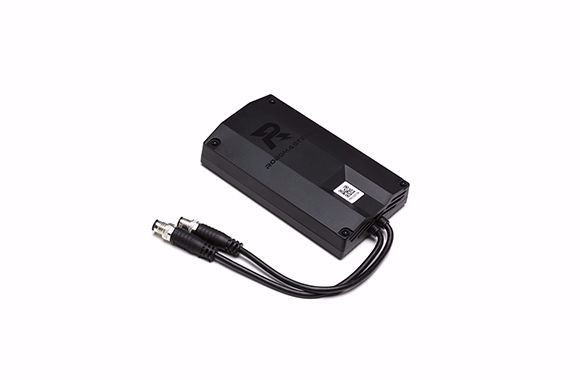

The RoboMaster Video Transmitter Module (including the Transmitter and the Receiver) is a set of real-time high-resolution image collection and wireless transmission system working at the 5.8 GHz frequency band, with high resolution, high frame rate and low latency, and supports multiple camera transmission modules working simultaneously. When operating, the camera of the VTM Transmitter (hereinafter referred to as the Transmitter) collects images in 1080P @ 60 Hz, and the collected images are transmitted in real time to the VTM Receiver (hereinafter referred to as the Receiver). HDMI (High Definition Multimedia Interface) is the image output interface of the Receiver, through which the Receiver is connected to the display to show real time image or connected to your PC through the video capture card.
Product Specifications
Power Supply Voltage Of Transmitter: 12 V
Working Current Of Transmitter: 600 mA
Power Supply Voltage Of Receiver: 12 V
Working Current Of Receiver: 450 mA
Operating Wireless Frequency: 5.8 Ghz
Transmission Image Size: 720 P
Transmission Image Frame Rate: 30 Hz
Image Output Interface of Receive: HDMI (1920*1080)
Image Transmission Delay: < 120 ms
Max. Transmission Distance: 80 m unblocked
