Product description

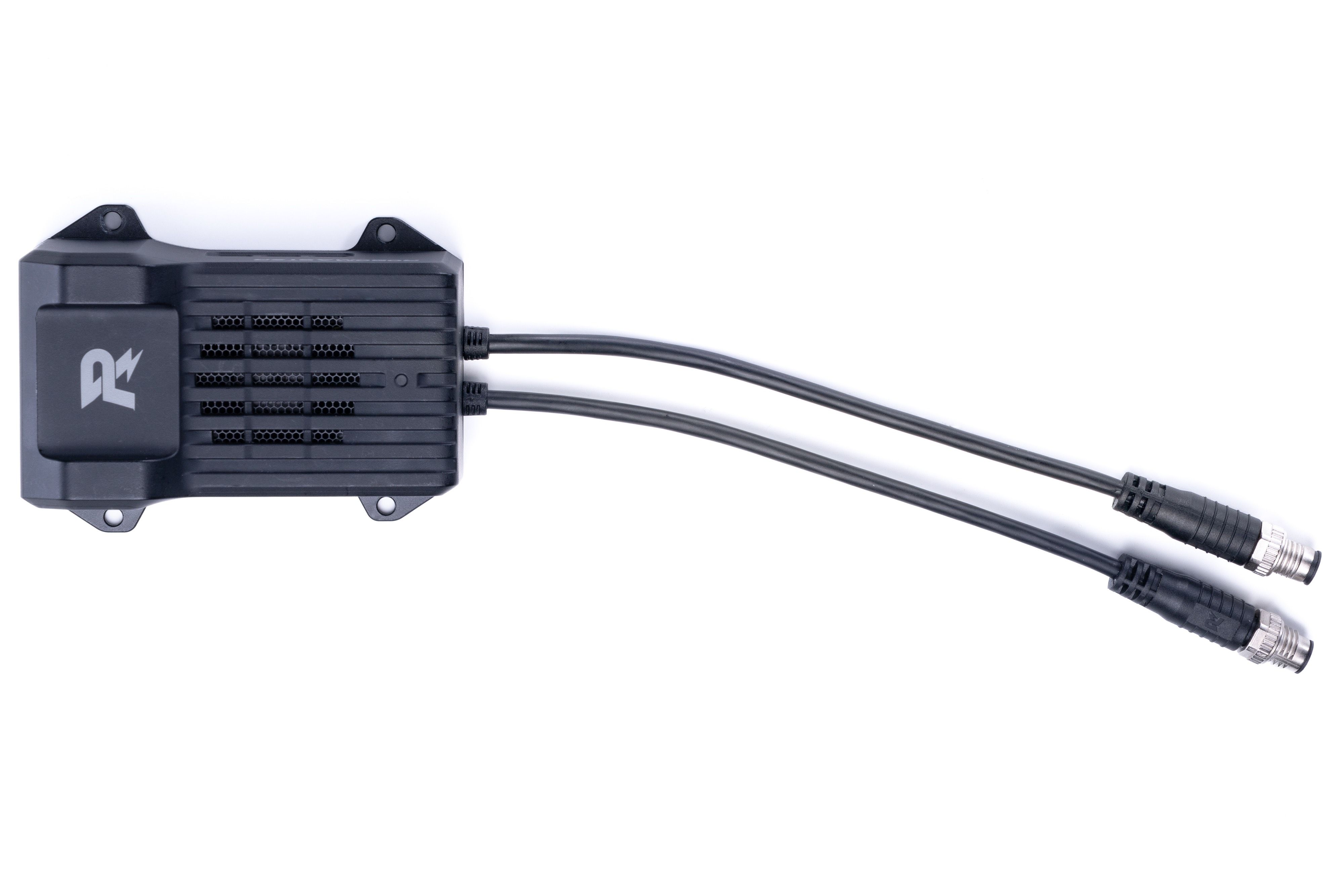

RoboMaster Referee System Video Transmission Module (including the transmitter and the receiver, hereinafter referred to as the "VTM") is an image capture and wireless transmission system featuring high resolution, high frame rate, and low latency. Multiple VTMs can work simultaneously. The RoboMaster Video Transmission Module transmitter should be installed on the robot, and it has functions such as image capture and data transmission. As a component of the RoboMaster University Series Referee System (hereinafter referred to as the "Referee System"), the VTM provides a first-person view of robots. The VTM cannot be used independently.

Product Specifications

Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Frequency (China and other non-Japan regions): 5150-5250 MHz (indoor use only), 5732-5829 MHz
Operating Frequency (Japan): 5150-5250 MHz, 5650-5755 MHz
Video Resolution Maximum: 1920×1200
Video Frame Rate Maximum: 60 Hz
End-to-End Latency: < 90 ms (laboratory environment)
Max Transmission Range: 100 m (without any obstruction)
Weight Approx.: 121 g
Input Voltage: 12 V
Operating Current: 665 mA
