M3508 Gear Motor

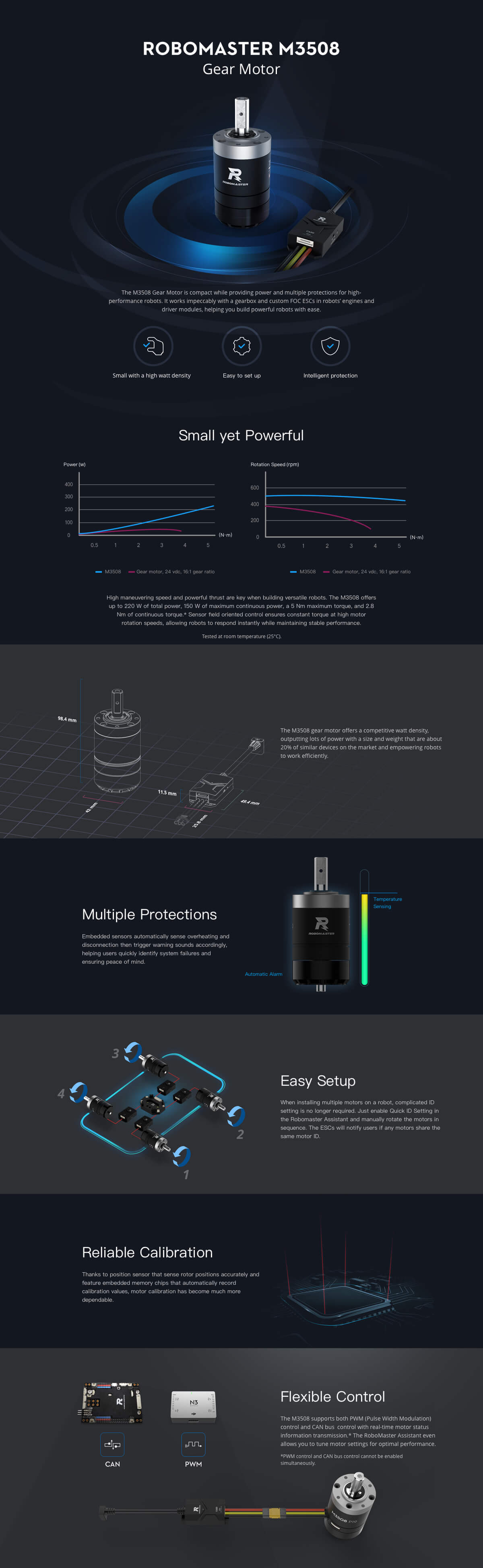

The M3508 Gear Motor is compact while providing power and multiple protections for high-performance robots. It works impeccably with a gearbox and custom FOC ESCs in robots’ engines and driver modules, helping you build powerful robots with ease.

SPECS

  • M3508 Brushless DC Gear Motor Combo

    Rated Voltage:24 V

    Rotational Speed (without payload):482 rpm

    Max continuous torque:3N·m

    Max rotational speed with a continuous torque of 3N·m:469rpm

    Operating Temperature Range:32°~122° F (0~50° C)

  • M3508 Brushless DC Gear Motor

    Weight:365 g

    Outer diameter:42 mm

    Total length:98.4 mm

    Output shaft:Type-D with threaded holes

    Output shaft diameter:10 mm

  • C620 Brushless DC Motor Speed Controller

    Rated Voltage:24 V

    Weight:35 g

    Dimensions(LWH,without cables):49.4×25.8×11.5 mm

    Total length (with cables): 344±15 mm

    Two Signal Modes:CAN bus communication、50-500 Hz PWM signal

    Max Continuous Current:20 A

  • M3508 Accessories Kit

    Terminal Board ×1

    Insulation Patch×1

    Cables(Pin*Length/mm*quantity):

    Development Board Cable 8×400×1

    XT60 Power Cable (Female) 2×300×1

    XT30 Extension Power Cable 2×150×4

    Longer 7-Pin M3508 Cable 7×320×4

    Longer CAN Cable for C620 2×430×4

    3-Phase M3508 Extension Cable 3×150×4

DOWNLOADS

  • RoboMaster M3508 DC Brushless Gear Motor Mix Control.pdf

    2017-11-10download

  • RoboMaster C620 Brushless DC Motor Speed ControllerV1.01.pdf

    2017-08-31download

  • RoboMaster M3508 Accessories Kit V1.0.pdf

    2017-08-31download

  • RoboMaster M3508 P19 Brushless DC Gear Motor V1.0.pdf

    2017-08-31download

  • RoboMaster C620 Brushless DC Motor Speed Controller.zip

    2017-08-15download

  • RoboMaster M3508 Accessories Kit.zip

    2017-08-15download

  • RoboMaster M3508 P19 Brushless DC Gear Motor.zip

    2017-08-15download
