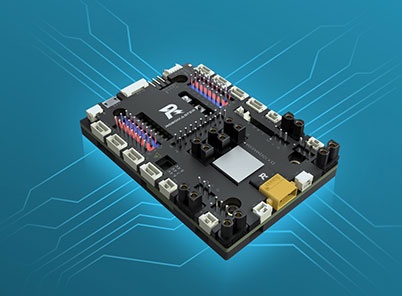

RoboMaster Development Board Kit

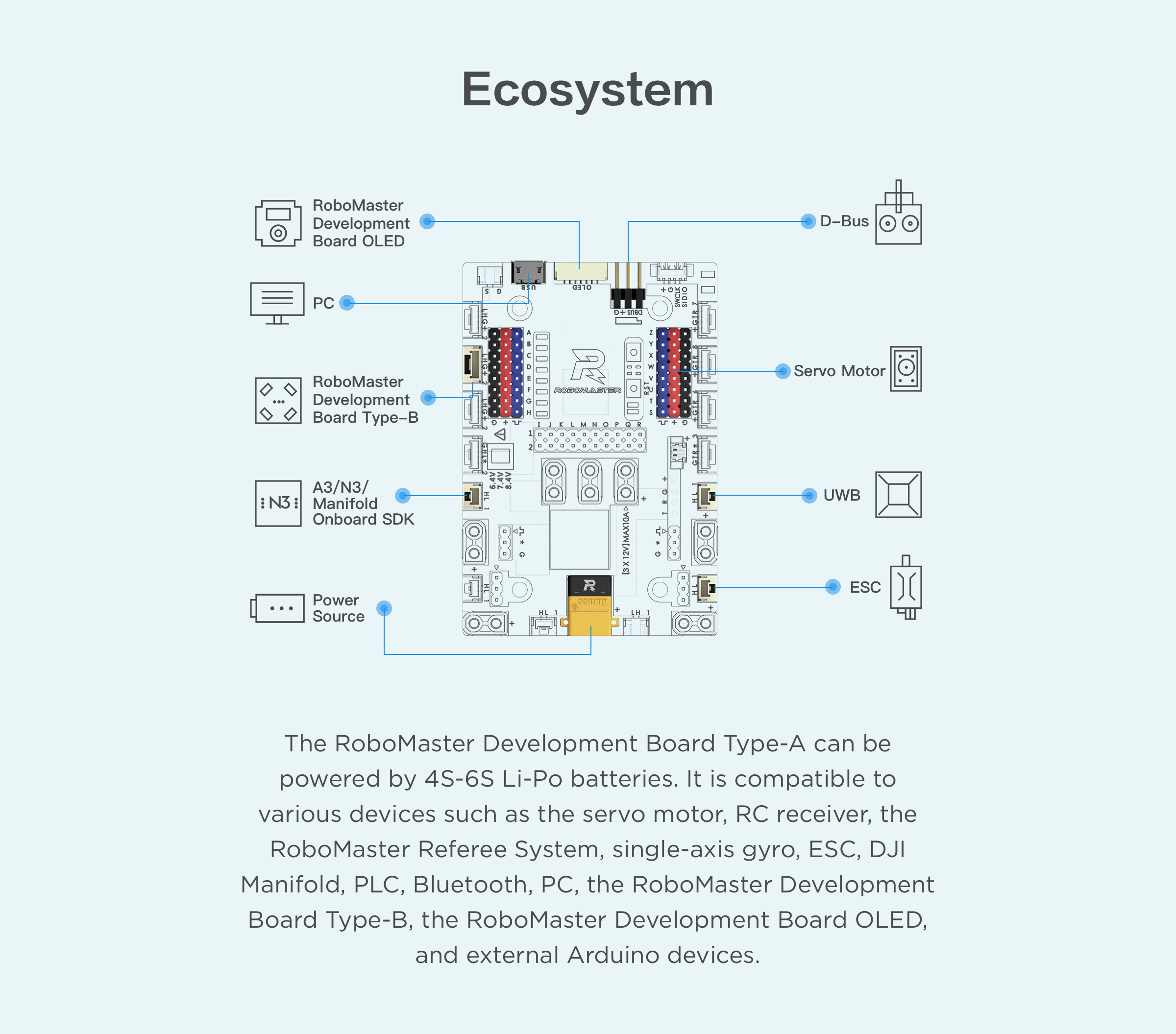

Refined by university engineers around the world through the intensity of theRoboMaster competition, the RoboMaster Development Board Kit benefits users with proven stability and power. Reducing R&D costs while increasingthe stability of embedded systems, it is an invaluable tool for fields such as education and learning, compact and mobile robotics, and IoT. The RoboMaster Development Board Kit is available in three models: Type-A, Type-B, and OLED.

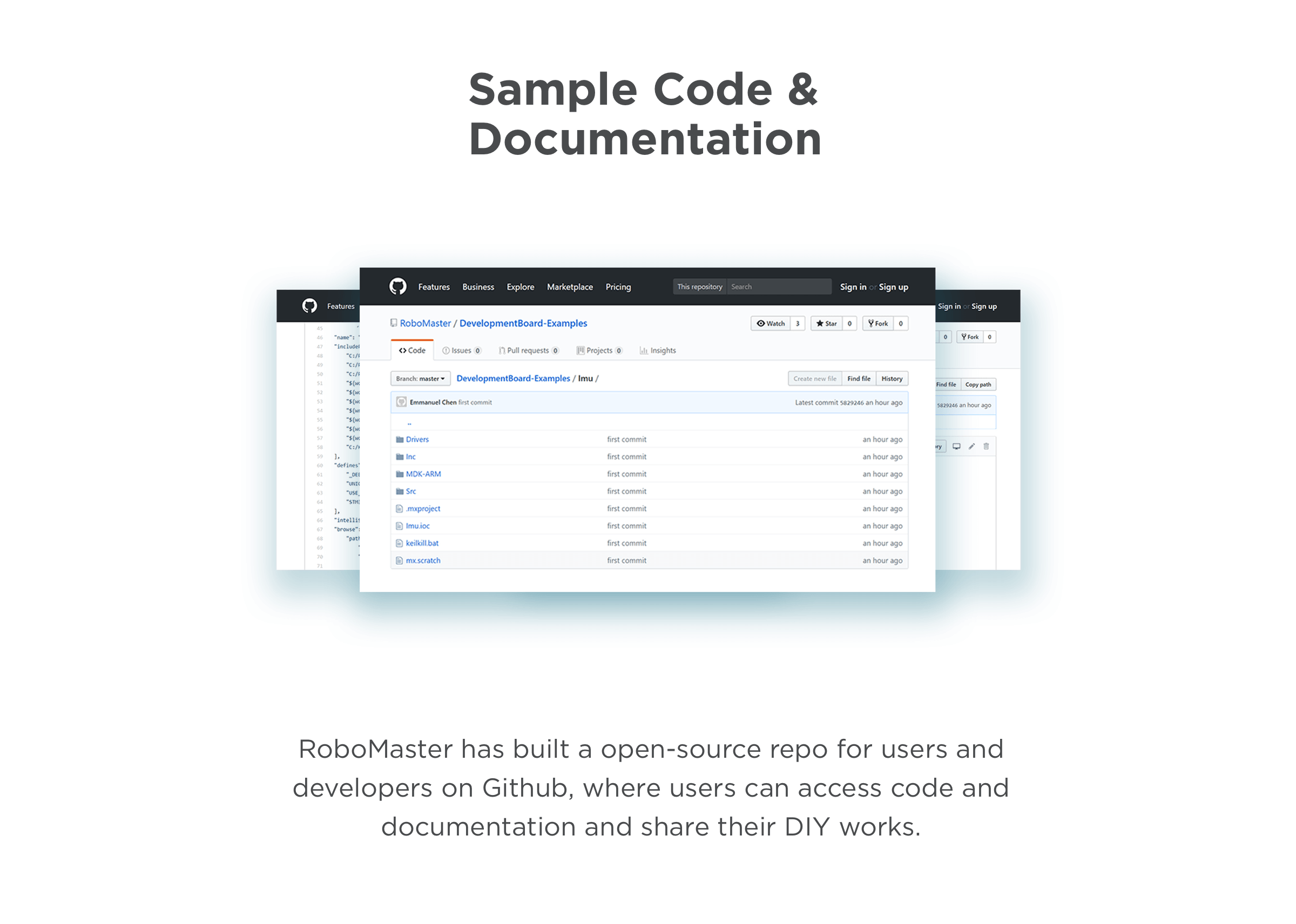

Sample Code &Documentation
SPECS

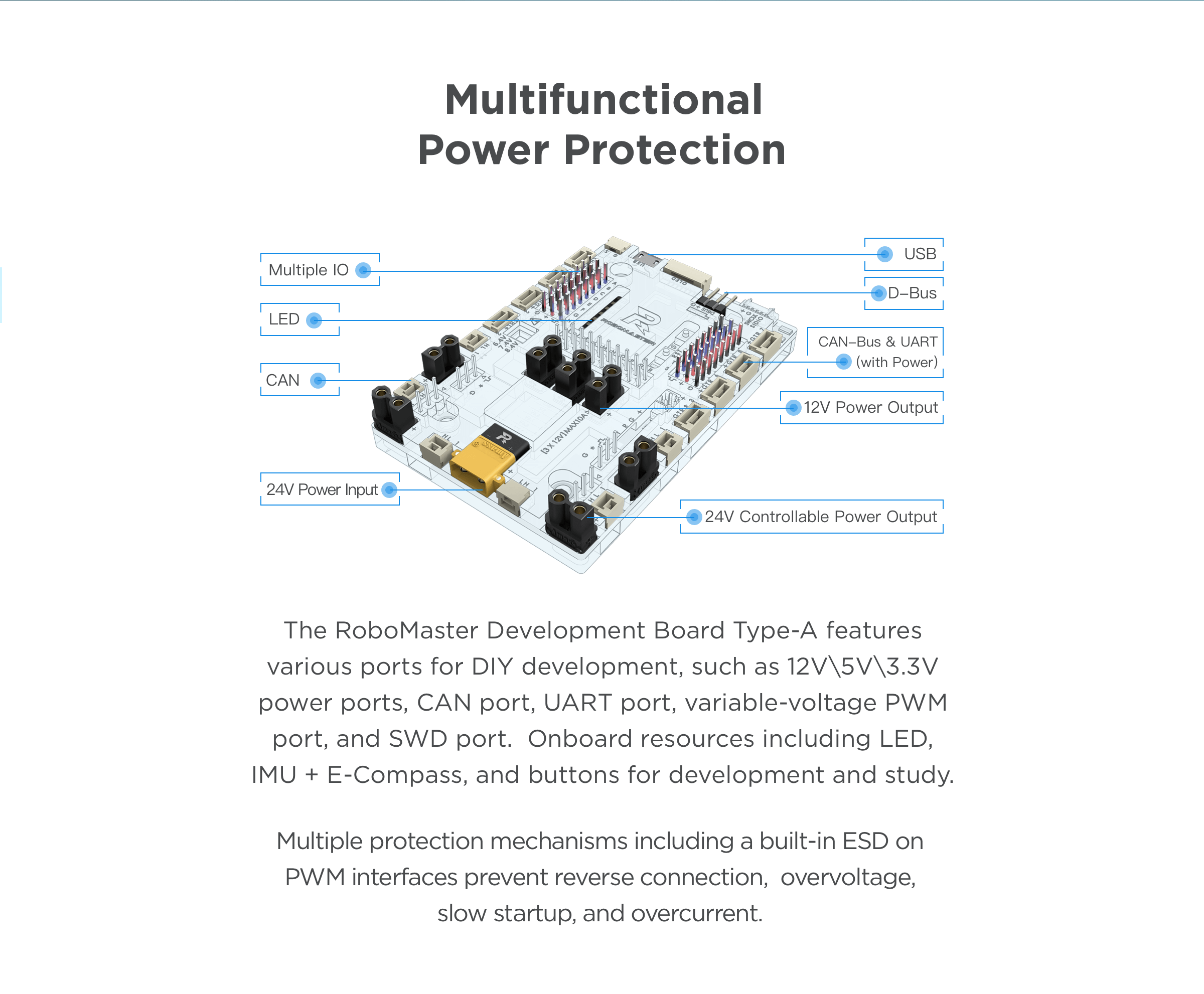

Development Board Type A
Max Voltage：26 V
Supported Battery Type：4S to 6S LiPo
Max Operating Current* (continuous)：20 A
Weight：1.54 oz (48 g)
Dimensions (L×W)：3.35×2.28 in (85×58 mm)
CAN Port：CAN1：6 CAN2：4
UART Port：4
BTUART Port：1
DBUS：1
Voltage Adjustable PWM Port：16
PWM：4
GPIO：18
Customizable LED：10
Customizable Button：1
IMU+E-compass：1
Controllable Power Output Port：4
12V Power Output Port：3
5V Power Outlet Port：2
3.3V Power Holes：1
Development Board Cables Parameter（Product Name：Connector Type & Cable Type & Length）
2-Pin XT30 Power Cable：XT30 male / XT30 female & 18 AWG silicon & 450mm
2-Pin CAN Cable：1.25-mm pitch 2-pin GHR / 1.25-mmpitch 2-pin GHR & 26 AWG flexible flat & 200mm
2-Pin Cable：2.5-mm pitch 2-pin XH / 2.54-mm pitchDuPont & 24 AWG flexible flat & 200mm
2-Pin 5V Power Cable：1.25-mm pitch 2-pin / NA & 26 AWG flexible flat & 100mm
3-Pin PWM Cable ：2.54-mm pitch 3-pin / 2.54-mm pitch 3-pin & 26 AWG flexible flat & 200mm
3-Pin Sensor Cable：2.5-mm pitch 3-pin XH / 2.54-mm pitchDuPont & 26 AWG flexible flat & 200mm
4-Pin Cable Adapter：1.25-mm pitch 4-pin GHR / 2.54-mmpitch DuPont & 26 AWG flexible flat & 500mm
4-Pin SWD Cable：1.25-mm pitch 4-pin / 2.54-mm pitchDuPont & 26 AWG flexible flat & 500mm
4-Pin Cable：1.25-mm pitch 4-pin GHR / 1.25-mmpitch 4-pin GHR & 26 AWG flexible flat & 400mm
7-Pin OLED Cable：1.25-mm pitch 7-pin GHR / 1.25-mmpitch 7-pin GHR & 26 AWG flexible flat & 150mm
8-Pin Power Cable Adapter：2.0-mm pitch 8-pin / 1.25-mm pitch 2-pin GHR, XT30 female & 26 AWG flexible flat & 350mm
10-Pin DuPont Cable：2.54-mm pitch DuPont / 2.54-mm pitch DuPont & 26 AWG flexible flat & 400mm

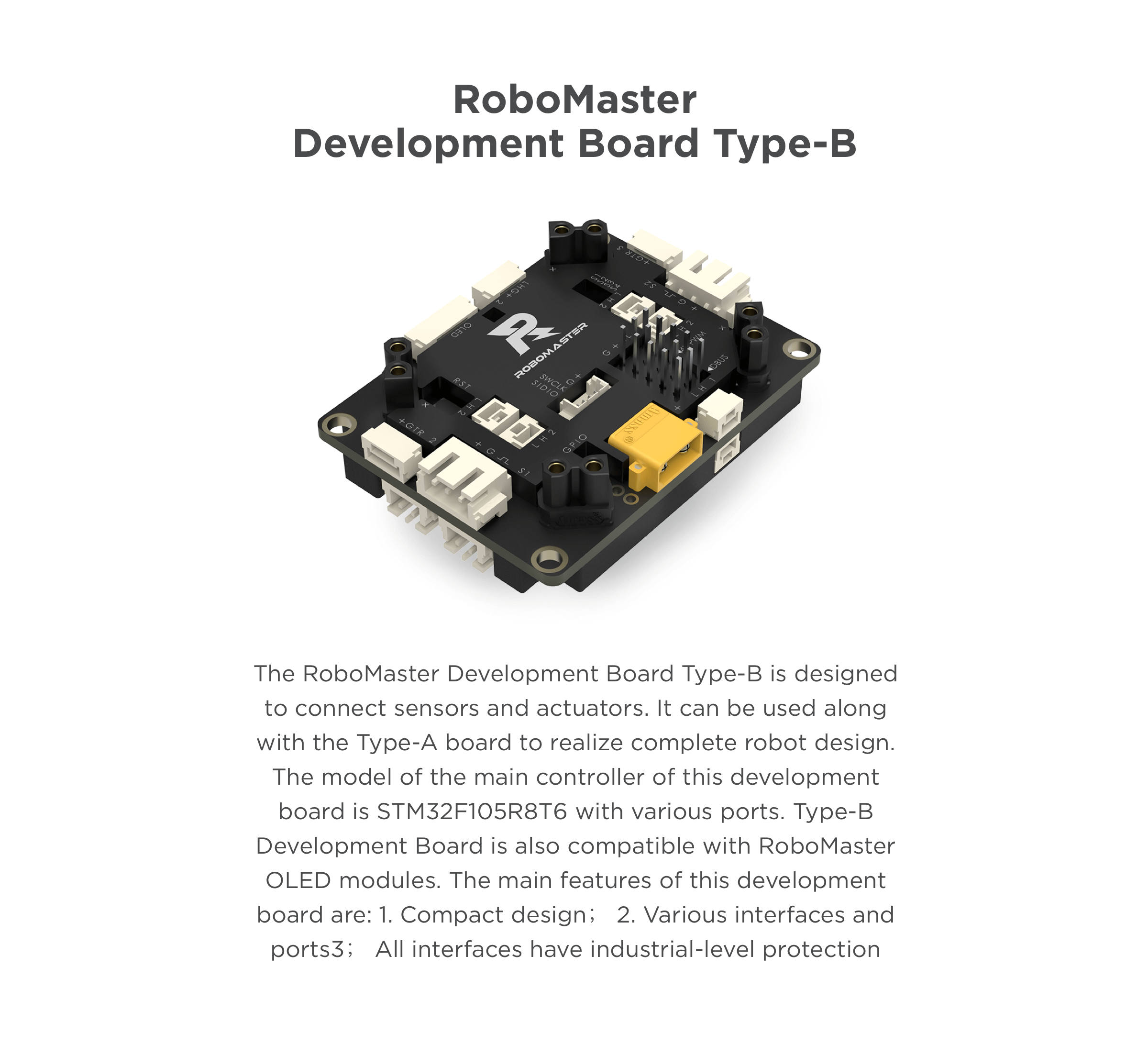

Development Board Type B
Max Voltage：26 V
Supported Battery Type：3S to 6S LiPo
Max Operating Current* (continuous)：20 A
Weight：0.77 oz (24 g)
Dimensions (L×W)：1.93×1.48 in (60×46 mm)
CAN Port：CAN1：2 CAN2：5
UART Port：2
DBUS：1
PWM：4
GPIO：4
Customizable LED：2
Controllable Power Output Port：4
Power Output Port：4
Sensor Port：4

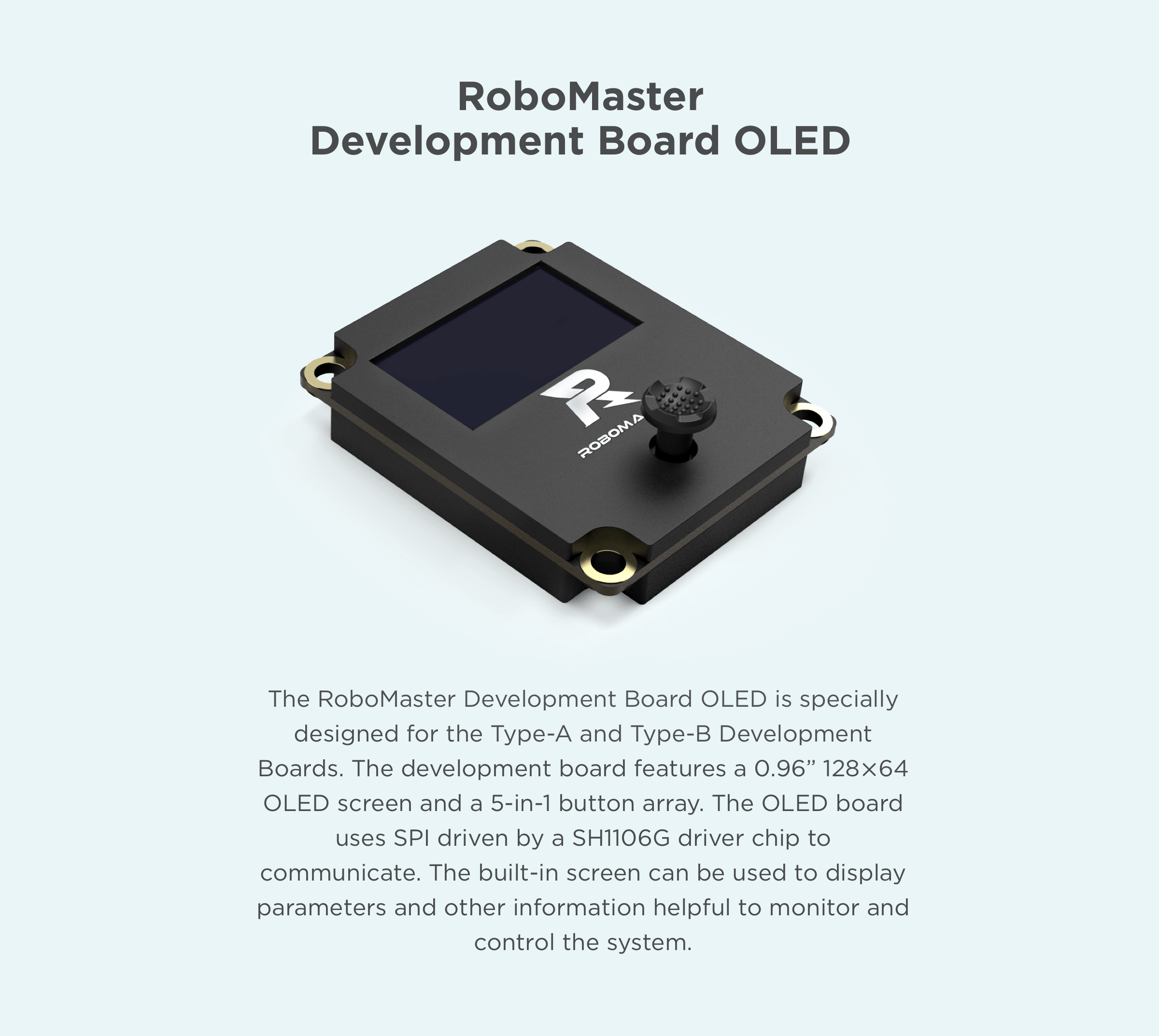

Development Board OLED
Rated Voltage：3.3 V
Max Operating Current：10 mA
Communication Protocol：SPI
Button：5D Button
Weight：0.32 oz (9 g)
Dimensions (L×W)：1.46 × 1.77 in (37 × 45 mm
OLED Screen Resolution：128 × 6
OLED Screen Size：0.96 in (244 mm)
