RoboMaster 17mm Fluorescent Projectile Charger

USD 13

Buy

https://shop307244465.taobao.com/

Product description

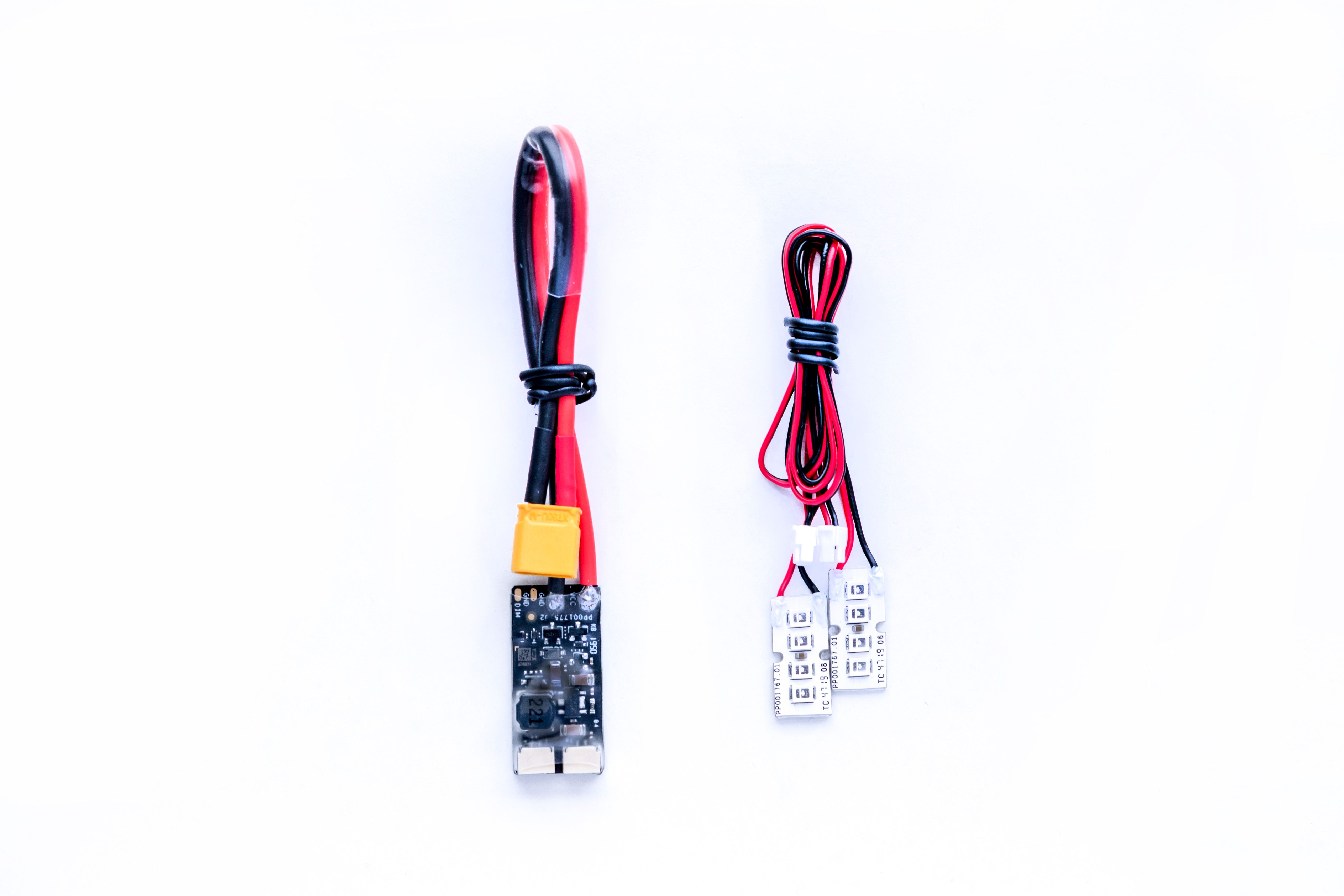

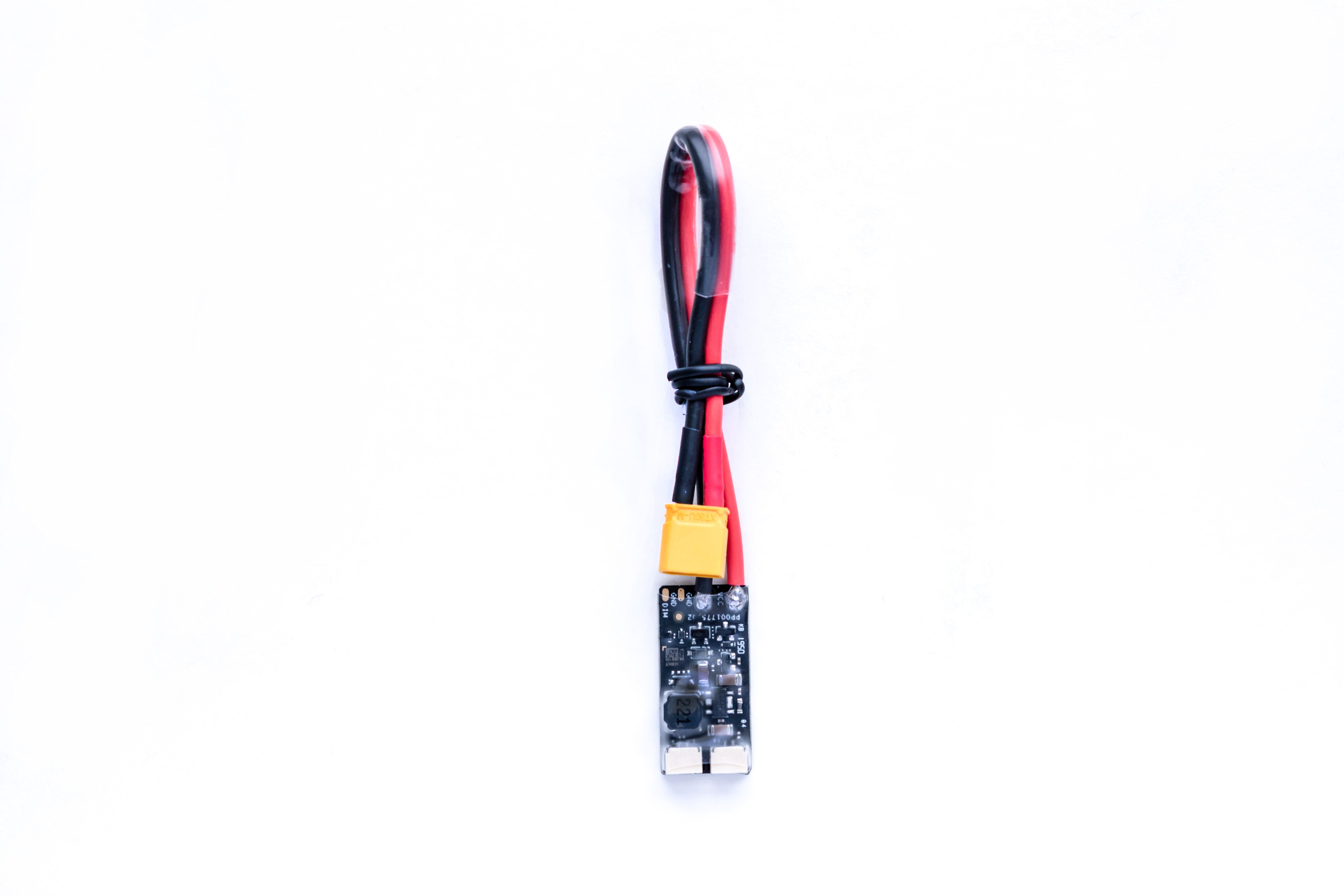

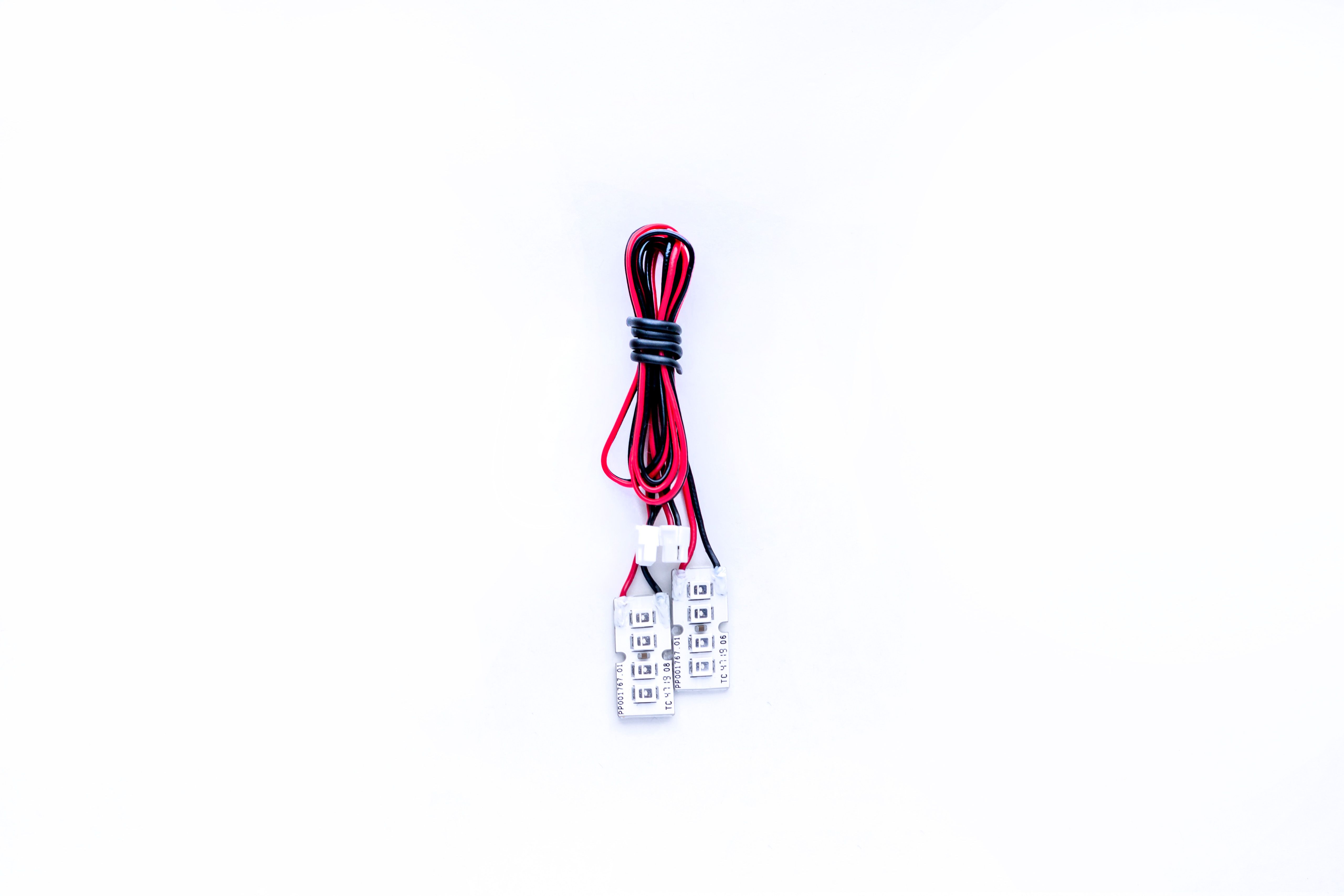

The RoboMaster 17mm Fluorescent Projectile Charger can be attached to the RoboMaster 17mm Projectile Launching Mechanism to achieve a glowing effect.By using specific ultraviolet light wavelengths,the Projectile Charger illuminates the fluorescent material of the projectiles.Quick to assemble and dissemble,the Projectile Charger boasts a wide range of voltage inputs,a high-precision constant output LED driver,and a UV panel and heat sink with high thermal conductivity.The Projectile Charger also features hot-swap support,anti-reverse connection,and anti-overvoltage protection.

Product Specifications

Specifications
Input Voltage for LED Driver 9-28V
Constant Output Current for LED Driver 300mA
Glow Waveband for UV Light Panel 390-410nm
Rated Power for UV Light Panel 1Wx2
Weight 18g
Operating Temperature Range 0°to 55°C(32°to 131°F)

Related download

  • RoboMaster 17mm Fluorescent Projectile Charger User Manual

    Updated on: 2020-04-15

    download
  • UV_Light_Panel.STEP

    Updated on: 2020-04-15

    download
  • LED_Driver.STEP

    Updated on: 2020-04-15

    download
